Trusted Appliances from the Developers of FreePBX

With FreePBX, you choose how you want to deploy your system. The platform is highly compatible with most virtual machines and commercial available hardware. But for the best performance, appliances certified by the FreePBX developers offer the highest performance for the best value.

Certified FreePBX appliances from Sangoma are purpose-built, high-performance PBX solutions. Designed and rigorously tested for optimal performance, this is the only officially supported hardware for FreePBX. Plus, these appliances come preloaded with the FreePBX Distro and include both a 25 year license to the SysAdmin Pro commercial module and a one-year warranty.

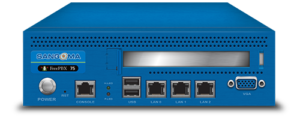

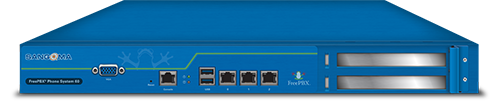

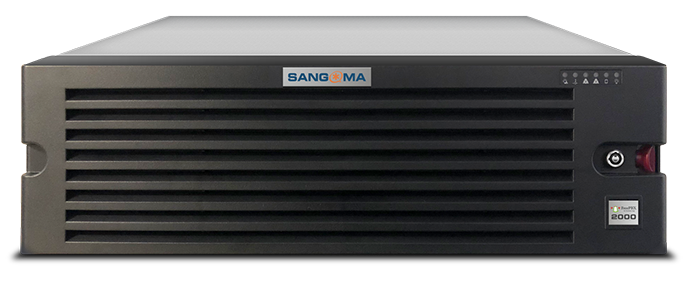

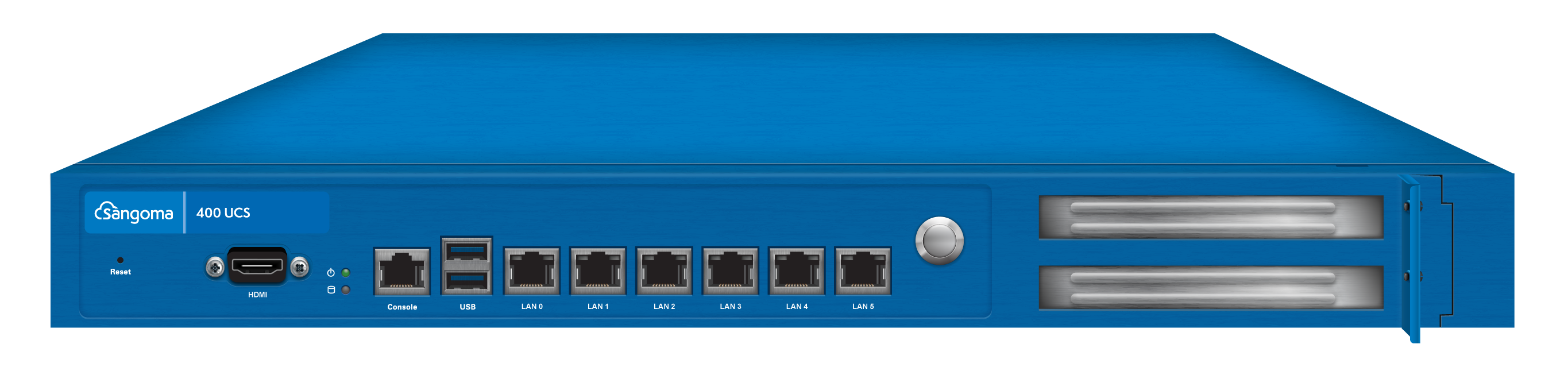

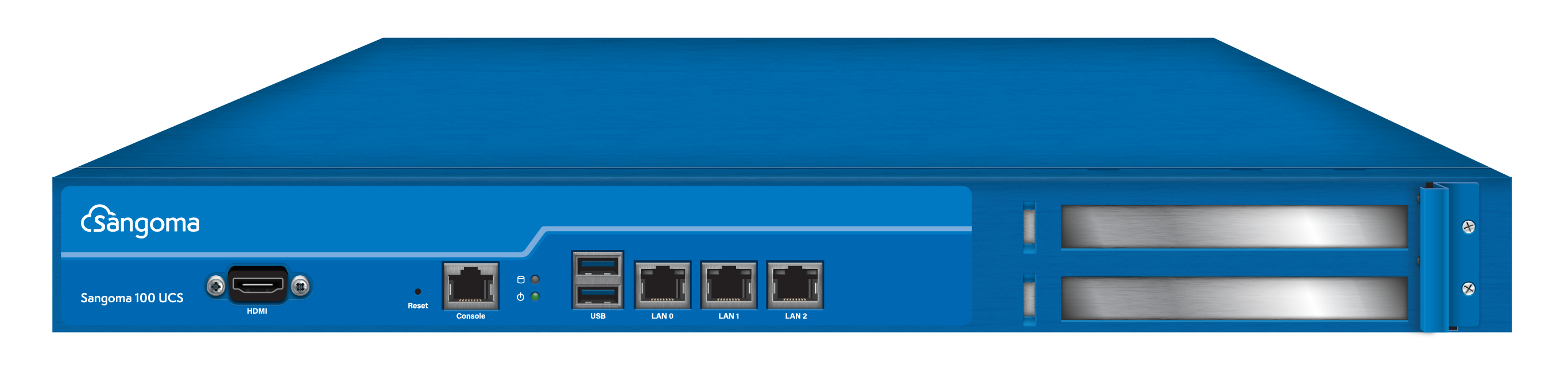

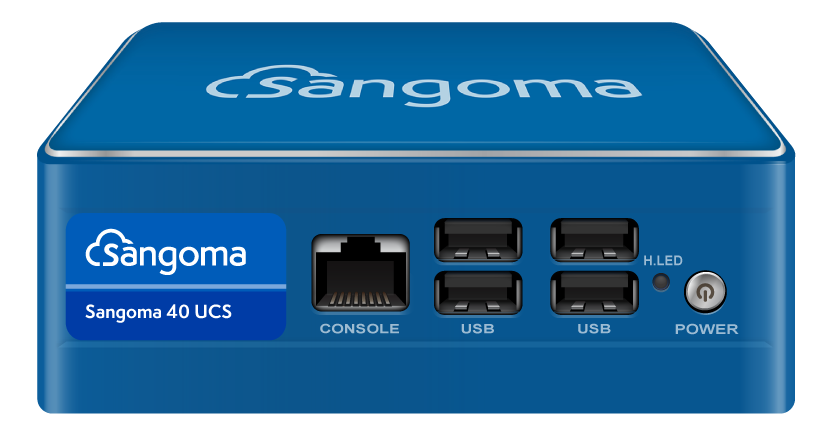

FreePBX 40 Front FreePBX System 60 Freepbx 100 Freepbx 400 FreePBX 1200 Appliance
FreePBX 40 FreePBX 60 FreePBX 100 FreePBX 400 FreePBX 1200
FreePBX Distro Pre-loaded
User Capacity 40 60 100 400 1200
Call Capacity 30 40 60 150 350
CPU Intel Celeron Quad Core Intel Celeron Quad Core Intel Celeron Quad Core Intel Core i5 Intel Core i7
Hard Drive Single 120GB SSD Single 120GB SSD Single 250GB SSD Dual 250GB SSD
(Raid 1)
Dual 500GB SSD
(Raid 1)
Memory 4GB 4GB 4GB 8GB 16GB
Network Ports 4 3 3 6 6
Expansion 2 PCI Express Slots 2 PCI Express Slots 4 PCI Express Slots 4 PCI Express Slots
Form Factor Small Form Factor Case
(Wall Mount Included)
1U Form Factor Case
(Ear brackets included)
1U Form Factor Case
(Ear brackets included)
1U Form Factor Case
(Ear brackets included)
1U Server
(Sliding rails included)
Video out Console 1x Video*/Console 1x Video*/Console 1x Video*/Console 1x Video*/Console
Dimensions 127mm (W) x 127mm (D) x 50mm (H) 430mm (W) x 320mm (D) x 45mm (H) 430mm (W) x 320mm (D) x 45mm (H) 430mm (W) x 620mm (D) x 43mm (H) 430mm (W) x 620mm (D) x 43mm (H)
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year
Purchase Purchase Purchase Purchase Purchase
*Video = VGA or HDMA depending on hardware revision

Need More Functionality? Consider PBXact

PBXact is the commercially supported Unified Communications IP PBX solution based on FreePBX and developed by Sangoma, the primary sponsor and developer of the FreePBX project.

  • Includes most of the FreePBX commercial modules
  • Includes UC features such as desktop and mobile softphones and CRM integration
  • Based on FreePBX, but commercially hardened
  • Controlled by an easier-to-use interface
  • Commercially supported by Sangoma

If your organization needs the functionality of several FreePBX add-ons, PBXact may be the more cost effective choice.

pbxact software

Want Hosted FreePBX?

 Try FreePBX Hosting Risk Free for 30 Days

Evaluate the FreePBX hosting system risk-free for 30 days to ensure that it is right for you. If you’re not satisfied in the first 30 days of trying hosted FreePBX, simply terminate service and owe nothing. To learn more, visit the FreePBX hosting partner participating in your region by clicking the buttons below.

North America

UK
